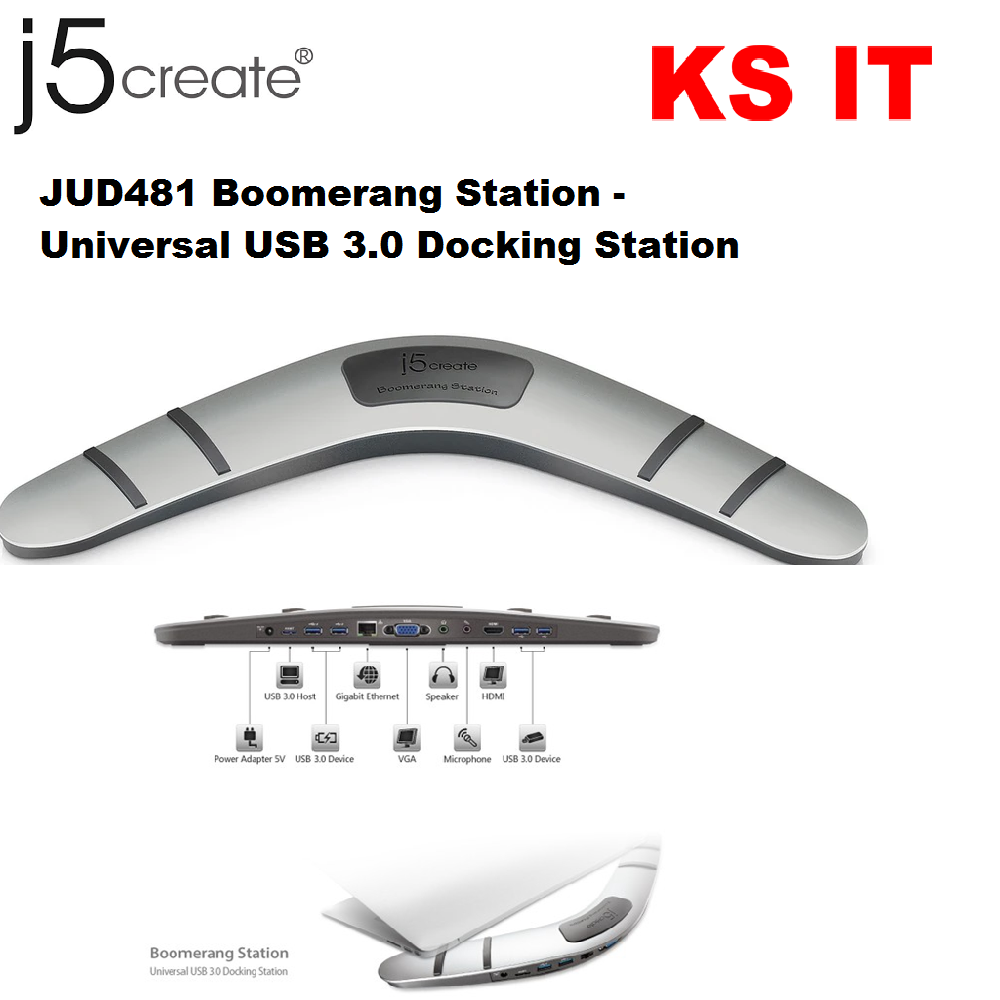

Interface

Host Interface

USB^™ 3.0 Micro B Female connector

Cable

USB^™ 3.0 Micro B to Type A

Video Interface

VGA-DB 15 pin Female connector

Standard HDMI^™ Female connector
(with Audio)

Ethernet

RJ-45 Female connector (Gigabit Ethernet)

USB^™ Ports

• USB^™ 3.0 Female connector x4
• USB^™ 3.0 Battery Charging V.1.2 Charging port x2

Audio Jack

Microphone: 3.5 mm stereo audio in
Speaker: 3.5 mm stereo audio out

Power

Power Adapter

Input: AC 100-240V, 50 - 60 Hz
Output: DC 5V/3A (US/JP/TW) or 5V/4A (EU/UK/AU/CN)

Power Mode

Self-Powered

Functions

Display

Video Playback:1080p
Display Resolution: 2048 x 1152 @ 32 bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:

• Supports Wake On LAN function, suspend mode and remote wake-up via link-change, Magic Packet^™, or Microsoft^® wake-up frame
• Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
• Supports Jumbo Frame
• Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Physical Specifications

Dimensions

Main body:
13.77 (W) x 1.18 (H) x 4.76 (D) in.
35(W) x 3(H) x12.1(D) cm
Cable length:
23.62 in. (60 cm)

Weight

Approximately 0.38 lbs. (0.174 kg)

Housing Material

ABS Plastic
