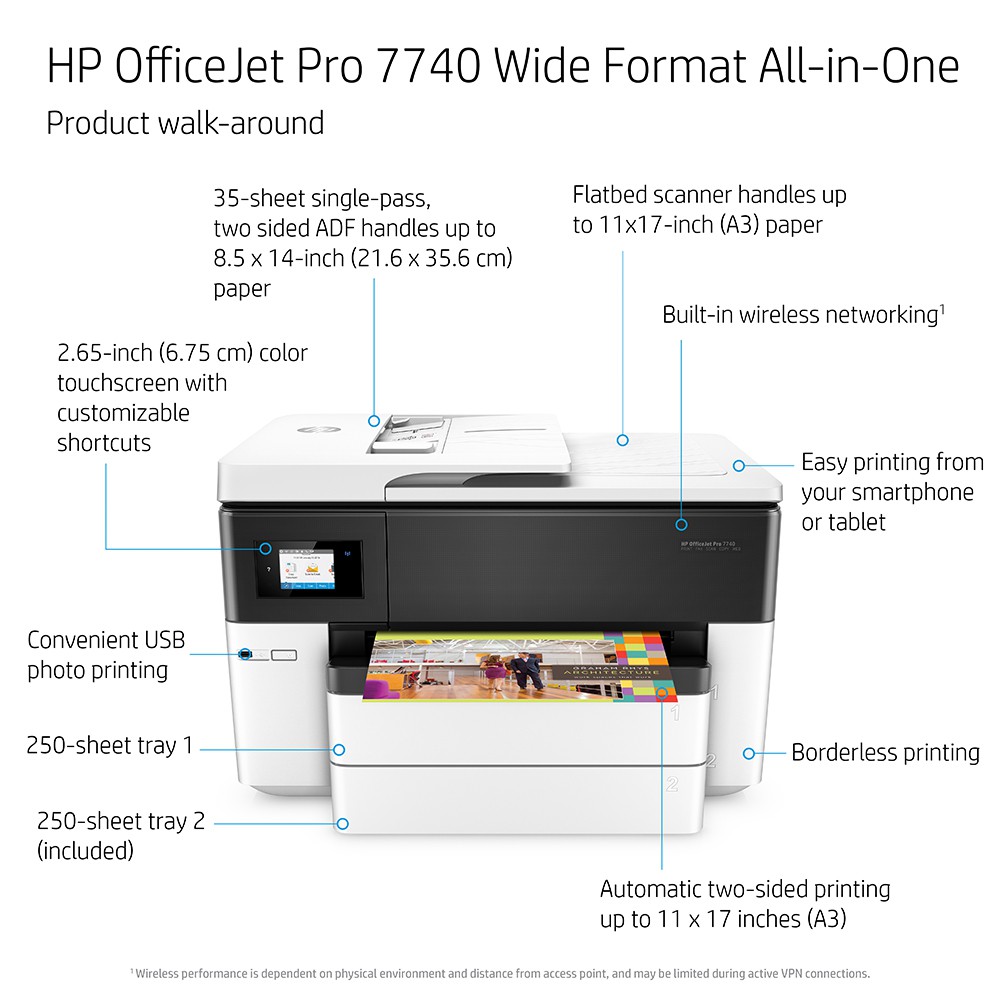

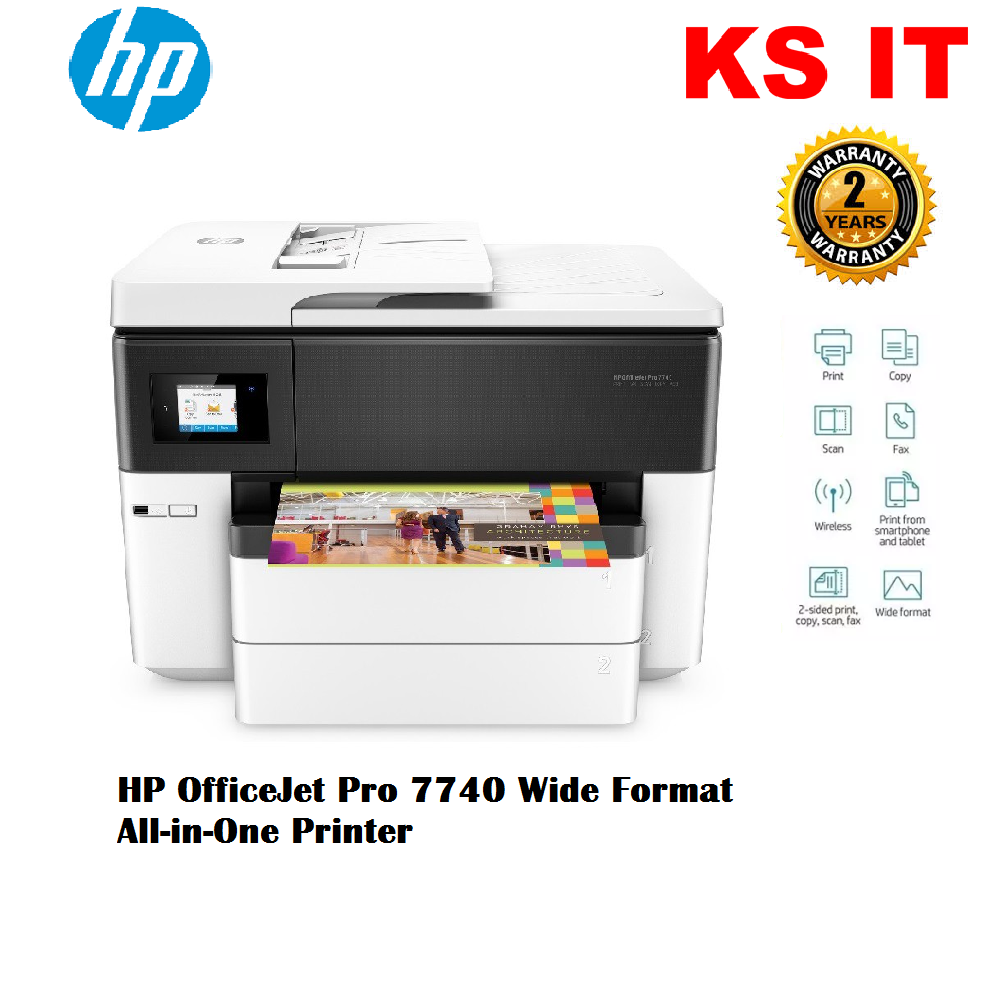

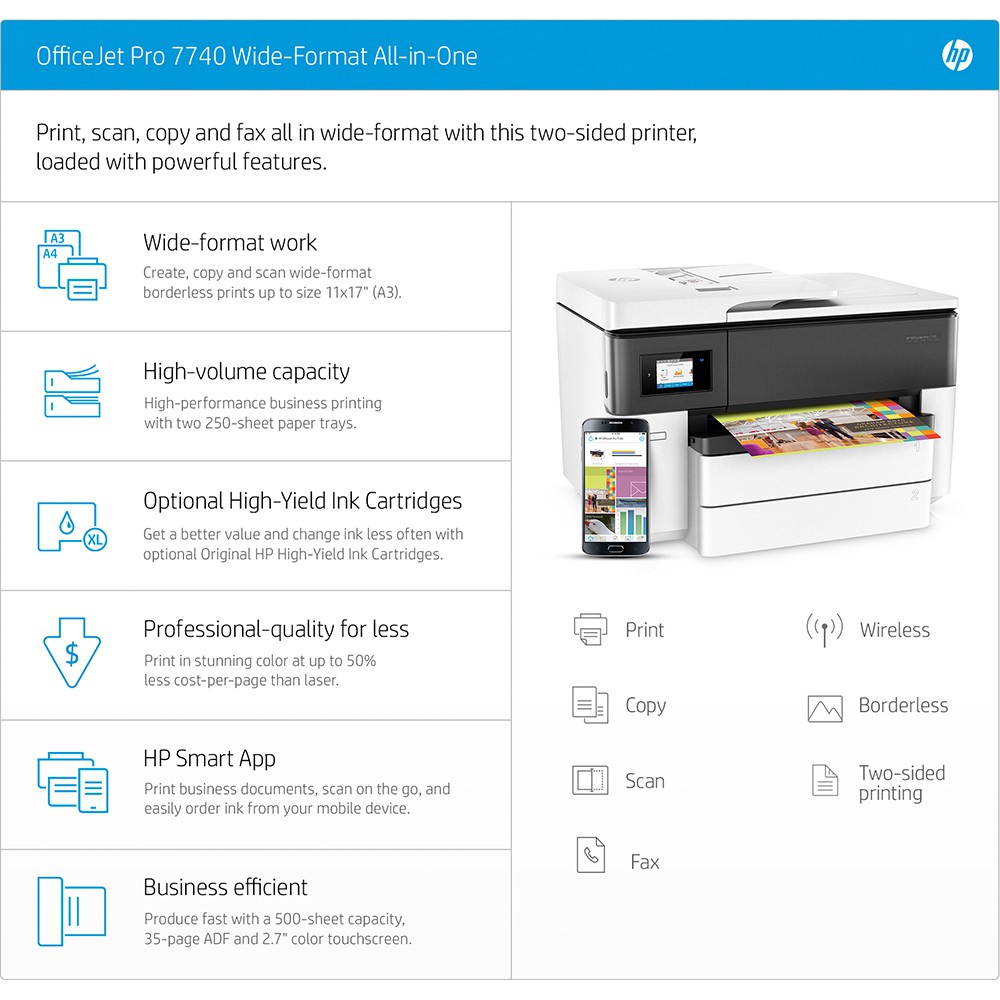

HP OfficeJet Pro 7740 Wide Format All-in-One Printer

Model name	HP OfficeJet Pro 7740 Wide Format All-in-One Printer
Product number	G5J38A

What's included and accessories

What's in the box

HP OfficeJet 7740 Wide Format All-in-One Printer; HP Setup Ink Cartridges; Power cord; Phone Cord; CD-ROM; Setup Poster; Getting Started Guide.

Connectivity

Ports	1 USB 2.0 with compatibility with USB 3.0 devices; 1 Host USB; 1 Ethernet; 1 Wireless 802.11b/g/n; 2 RJ-11 modem ports
Wireless capability	Yes, built-in WiFi 802.11 b/g/n; Wireless direct printing; AirPrint 1.5
Direct print supported	Wireless direct printing; USB printing

Copy

Copier settings	Copies; Size; Quality; Tray Selection; Lighter/Darker; Paper size; Resize; Paper Type; Two-sided; ID Copy, Collate; binding Margin; Enhancement; Crop; Copy preview
Color copy capability	Yes
Maximum number of copies	Up to 99 copies
Copy reduce / enlarge settings	25 to 400%
Copy speed, black (draft)	Up to 33 cpm
Copy resolution	Up to 600 dpi

Environmental

Acoustic power emissions	65dB (mono), 64dB (color)
Acoustic pressure emissions	60 dbA (draft printing at 19 ppm)
Operating humidity range	20% to 80% RH
Storage humidity	Max 90% RH Non-Operating
Recommended operating temperature range (Celsius)	15 to 32ºC
Recommended operating temperature range (Fahrenheit)	59 to 90ºF
Storage temperature range (Celsius)	-25 to 60°C
Storage temperature range (Fahrenheit)	-40 to 140ºF
Environmental specifications	EU ROHS, WEEE

Fax

Fax available	Yes, color
Fax features	Color Fax; Auto Reduction; Auto Redial; Speed Dial; Group Speed Dial; Junk Barrier; Poll to Receive; Forwarding (black only); Distinctive Ring; Delayed Send (black only); Scan and Fax; PC Fax Send and Receivee
Fax resolution	Up to 300 x 300 dpi
Fax memory	Up to 100 pages
Telephone handset supported	No
Fax telephone mode supported	Yes
Modem	Up to 33.6 kbps
Speed dials, maximum number	Up to 99 numbers
Fax transmission speed	4 sec per page

Memory

Memory, standard	512 MB
Memory, maximum	512 MB
Memory card compatibility	Support Thumb Drive

Mobile printing capability

Mobile printing services

Apple AirPrint™, HP ePrint, Wi-Fi Direct, Mopria-certified and Google Cloud Print™

Networking

Network protocols, supported

TCP/IP

Paper handling

Input capacity	Up to 250 sheets
Standard input capacity (cards)	Up to 50 sheets
Standard input capacity (envelopes)	Up to 30 envelopes
Standard input capacity (secondary tray)	Up to 250 sheets
Output capacity	Up to 75 sheets
Media sizes, custom (metric)	Tray 1: 76 x 127 to 297 x 420 mm
Media sizes, custom (U.S. standard)	Tray 1: 3 x 5 to 11.7 x 17 in
Media types	Plain; HP EcoFFICIENT; HP Premium Presentation Matte 120g; HP Tri-fold Brochure Glossy 180g; HP Brochure Matte 180g; HP Brochure Glossy 180g; HP Advanced Photo Papers; Light 60-74g; Envelopes 20 to 24 lb
Media weight supported (metric)	60 to 105 g/m²
Media weight supported (U.S. standard)	16 to 28 lb Bond
Borderless printing	Yes (up to A3/11 x 17-in)

Paper handling - ADF

Automatic document feeder capacity

Standard, 35 sheets

Paper handling - duplexer

Media sizes, duplex (metric)	A3, A4
Media sizes, duplex (U.S. standard)	Legal; Letter; Executive, Ledger

Physical dimensions

Maximum dimensions (W x D x H, metric)	584 x 712.8 x 383.3 mm
Maximum dimensions (W x D x H, U.S. standard)	23 x 28.06 x 15.10 in
Weight (metric)	19.5 kg
Weight (U.S. standard)	42.9 lb

Power

Energy savings feature technology	Schedule On and Schedule Off
Power supply type	Internal (Built-in) Universal Power Supply
Power supply	Input voltage: 100 to 240 VAC (+/- 10%), 50/60 Hz
Power consumption	2.66W (Energy Star sleep)

Print cartridges

Printer firmware must be up-to-date to use HP 956XL/957XL/958XL/959XL cartridges. For more information, see HP Printers - Which Cartridges Work with My HP Printer?.

Number of print cartridges

4 (1 each black, cyan, magenta, yellow)

Replacement cartridges

United States and Canada: HP 952 Black OfficeJet Ink Cartridge; HP 952 CMY OfficeJet Ink Cartridge; HP 952XL Black OfficeJet Ink Cartridge; HP 952XL CMY OfficeJet Ink Cartridge; HP 956XL Black

Europe, Middle East, and Africa: HP 953 Black, HP 953XL Black, HP 953 Cyan, HP 953XL Cyan, HP 953 Magenta, HP 953XL Magenta, HP 953 Yellow, HP 953XL Yellow; HP 957XL Black

Latin America: HP 954 Black, HP 954XL Black, HP 954 Cyan, HP 954XL Cyan, HP 954 Magenta, HP 954XL Magenta, HP 954 Yellow, HP 954XL Yellow; HP 958XL Black

Asia Pacific and Japan: HP 955 Black, HP 955XL Black, HP 955 Cyan, HP 955XL Cyan, HP 955 Magenta, HP 955XL Magenta, HP 955 Yellow, HP 955XL Yellow; HP 959XL Black

Printing specifications

Print technology	HP Thermal Inkjet
Duplex printing	Automatic
Print speed (black, draft, Letter)	Up to 34 ppm
Print speed (color, draft, Letter)	Up to 34 ppm
Print speed black (ISO)	Up to 21 ppm
Print speed color (ISO)	Up to 17 ppm
Print resolution (best)	Up to 4800 by 1200 optimized dpi on HP Advance Photo Paper 1200 by 1200 dpi input
Maximum print area (metric)	297 x 431.8 mm
Maximum print area (U.S. standard)	11.7 x 17 in
Monthly duty cycle	Up to 18000 pages
Print languages	HP PCL 3 GUI, HP PCL 3 Enhanced

Regulatory specifications

Regulatory model number	SNPRC-1500-02
Safety	IEC 60950-1: 2001/EN 60950-1: 2001+A11: 2004; EN 60825-1 1994+A1: 2002+A2: 2001; UL 60950-1: 2nd Edition; CAN/CSA-22.2 No. 60950-1-07; AS/NZS 60950: 2000, GB4943: 2001; NOM-019-SCFI-1998; Singapore SPRING; Russia GOST; China CCC, Taiwan BSMI, Korea Safety, EMC & Telecom, Australia/ New Zealand AS/NZS 60950.1-2003, CISPR 22: 2006, AS/ACIF S002:2005, Cambodia Safety, Croatia Telecom, Belarus Safety & Telecom, German GS (Safety), Indonesian Telecom, Jordan Teleom, Kenya Safety, Malaysia Telecom, Mexico-Telecom, New Zealand EMC & Telecom, Nigeria Safety & Telecom, Philippines-Telecom, Russia Safety-EMC- Telecom, Saudi Arabia-Safety, Serbia Safety-EMC, Uganda-Safety, Ukraine Safety-EMC-Telecom Wired, United Arab Emirates-Telecom Wired.
Telecom compliance (fax capability)	EU (R&TTE Directive 1999/5/EC); EU (TBR21:1998); USA (FCC Title 47 CFR Part 68; TIA/EIA/968:2001); Canada (CS-03 Issue 9); Mexico (SCT); Brazil (ANATEL); Argentina (CNC); Chile (SUBTEL); South Africa (ICASA)

Scan

Scan technology	Contact Image Sensor (CIS)
Scan speed (normal)	Simplex: Up to 8/6 images per minute (ipm) (black/color 200 ppi); Duplex: Up to 14/11 ipm (black/color 200 ppi)
Scan resolution, hardware	Up to 1200 x 1200 dpi
Levels of grayscale	256
Bit depth	24-bit
Maximum flatbed scan size	297 x 432 mm (11.69 x 17 in)
Maximum ADF one-sided scan size	216 x 356 mm (8.5 x 14 in)
Maximum ADF two-sided (duplex) scan size	210 x 297 mm (8.27 x 11.69 in)
Twain version	Version 2.1

System requirements

Minimum system requirements for Windows	Windows 10, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8
Recommended system requirements for Windows	Windows 10, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8
Minimum system requirements for Macintosh	OS X v10.11 El Capitan, OS X v10.10 Yosemite, OS X v10.9 Mavericks, 1 GB HD; Internet; USB
Recommended Macintosh system requirements	OS X v10.11 El Capitan, OS X v10.10 Yosemite, OS X v10.9 Mavericks, 1 GB HD; Internet; USB
Compatible network operating systems	Windows 10, Windows 8, Windows 7, Windows Vista (32-bit), Windows XP SP3 (32-bit); OS X v10.11 El Capitan, OS X v10.10 Yosemite, OS X v10.9 Mavericks
